The client needed accurate conversion tracking to measure real sales performance on Meta Ads. Their existing setup relied only on browser-side pixel tracking, which caused data loss and underreported conversions due to iOS privacy updates and ad blockers.
Objective
To integrate Meta Pixel and Meta Conversion API (CAPI) through Google Tag Manager (Web + Server) following Meta’s best practices for data accuracy, increase event match quality, and event deduplication.
⚙️ Implementation Breakdown
1. Tracking Audit
Reviewed the client’s Meta Pixel setup and mapped the entire conversion funnel.
Identified missing, duplicated, and unstructured events that caused attribution gaps.
2. Meta Pixel & Conversion API with First-Party Tracking Setup
Implemented Meta Pixel (browser) and Conversion API (server) via Google Tag Manager Server-Side.
Served tracking requests through the custom domain so cookies and requests appear first-party, reducing blocking by browsers and ad blockers.
Added a shared event id and event name between browser and server events for deduplication.

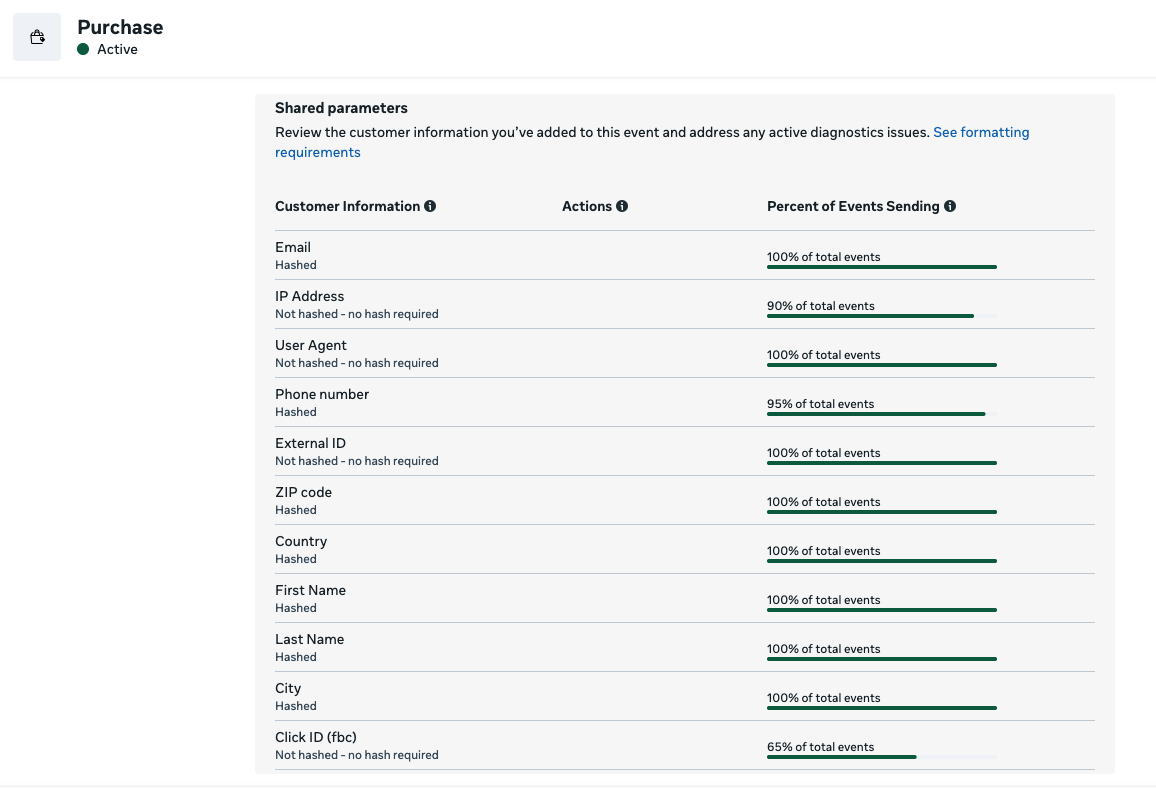

Passed all meta recommended user data parameters to increase Event Match Quality (EMQ).
Mapped standard eCommerce events: ViewContent, AddToCart, InitiateCheckout and Purchase.
Configured accurate event parameters including value, currency, content_ids, etc.
Ensured privacy/compliance: honored consent settings and documented data flows.
3. Validation & Testing

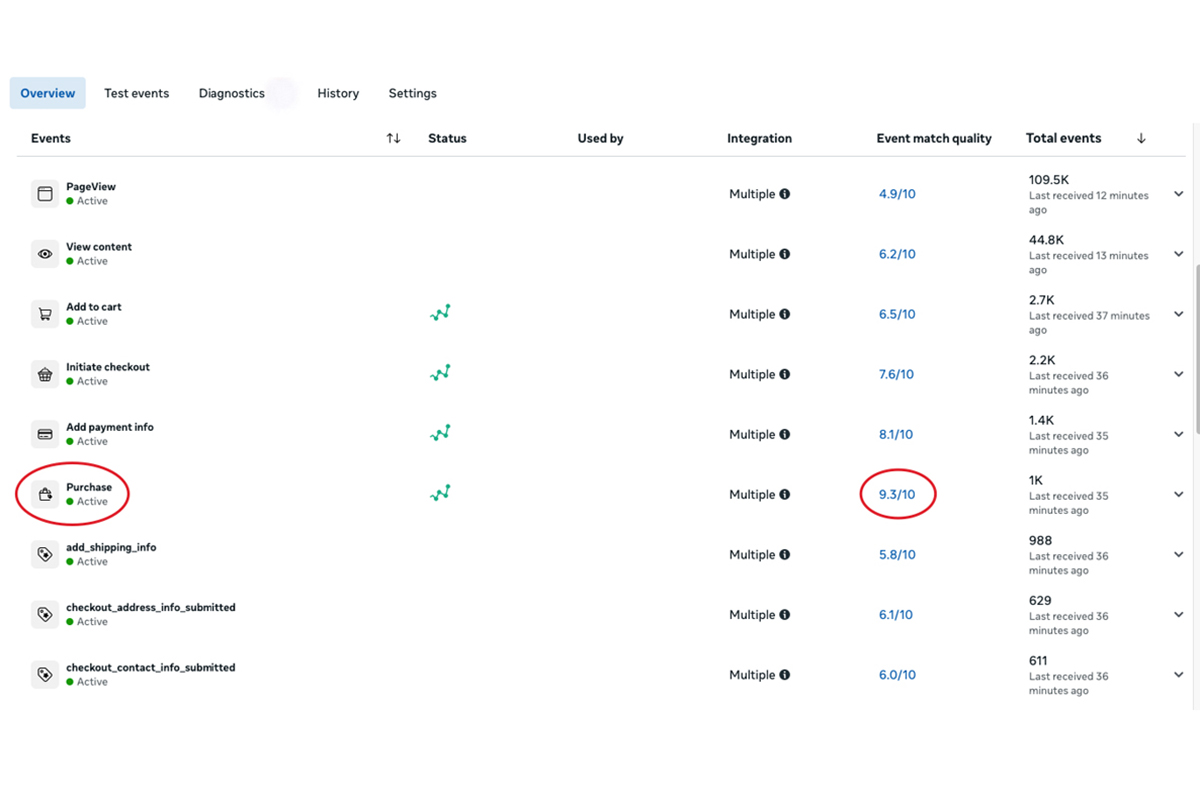

Verified events in Meta Test Events Tool and Events Manager.
Confirmed deduplication by matching identical event ids across browser and server events.

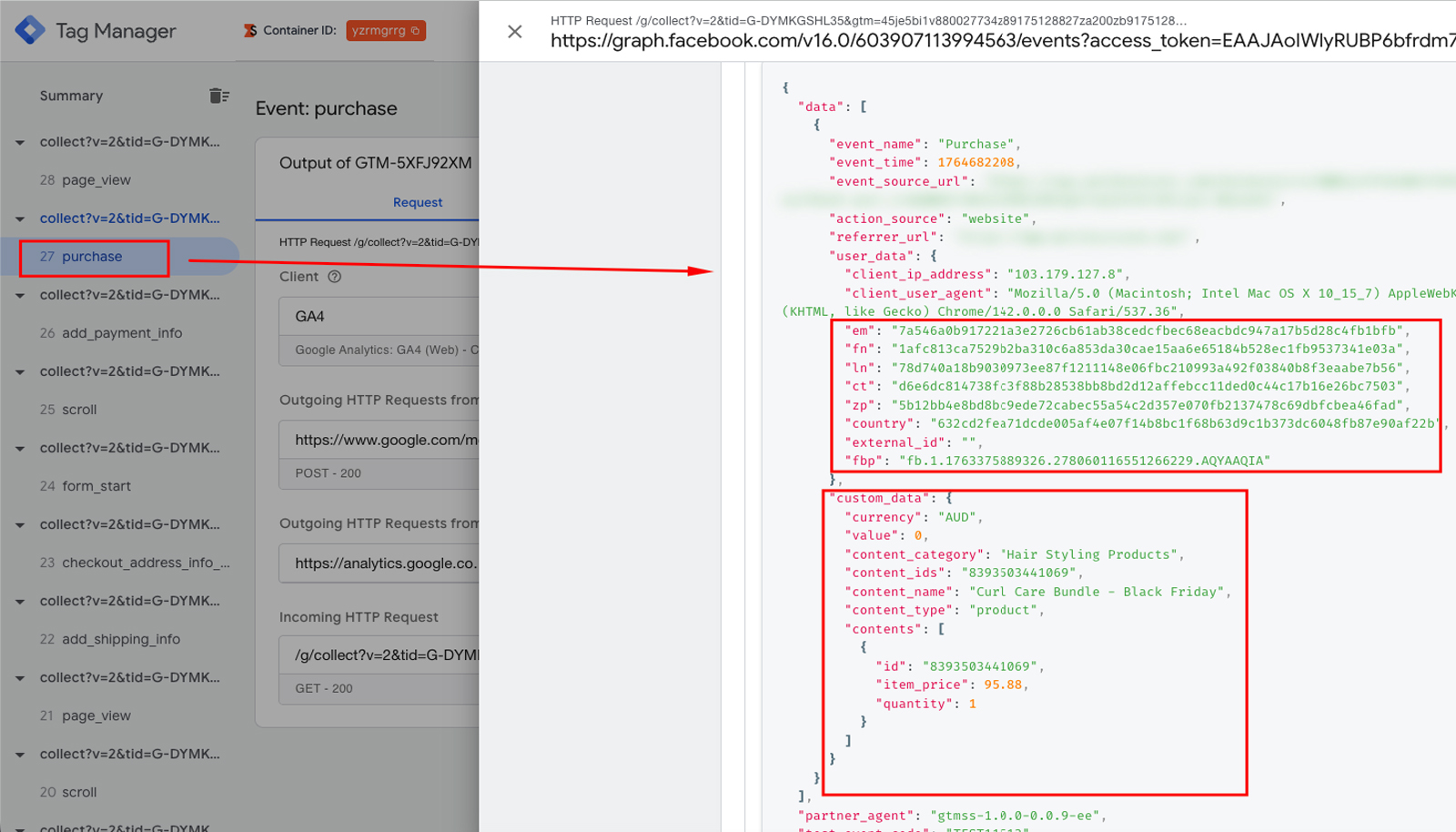

Inspected network requests and cookies in browser DevTools to ensure requests used the custom domain and first-party cookies were set.

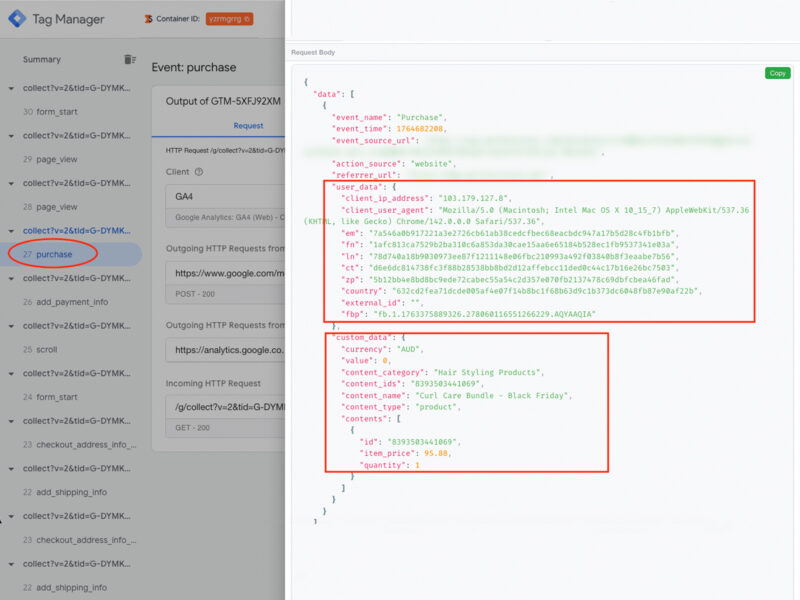

Used Meta Pixel Helper, Server Container logs, and EMQ monitoring to optimize parameters and match quality.
📈 Results
✅ 45% increase in Event Match Quality
✅ 152.9% more purchase data compared to pixel alone ✅ Eliminated double-counting through proper deduplication setup
✅ Reduced data loss from iOS and ad blockers ✅ Accurate ROAS tracking and improved ad optimization ✅ Client gained full visibility of user actions across the funnel
💬 Client Feedback
“After the CAPI setup, our ad data became far more reliable. Arafat followed every Meta guideline and ensured our tracking worked flawlessly. We finally understand what drives our real conversions.”
